Checkweigher 01T3
Weighing systems

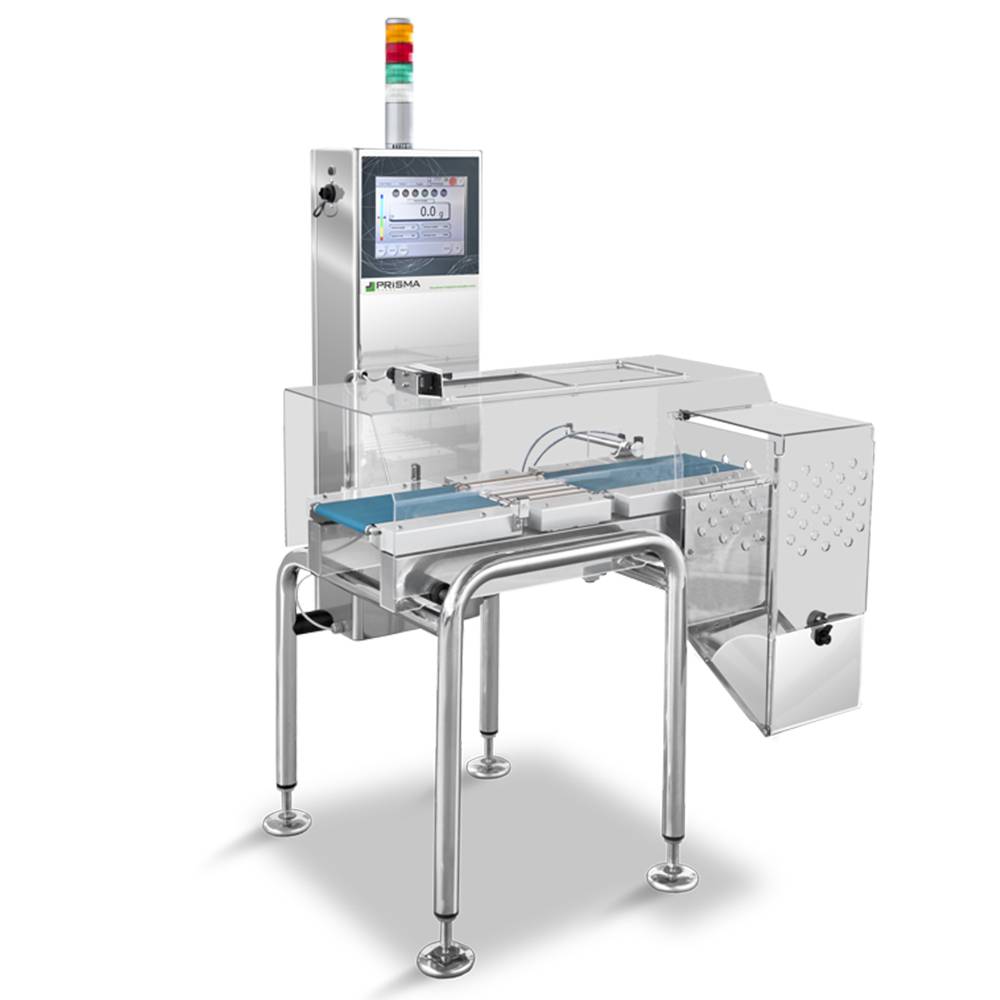

Checkweigher system for pharmaceutical products in small formats at high speed. With a maximum capacity of 600 g, accuracy from ± 0.1 g and a production rate of 500 ppm, 01T3 pharma is the ideal instrument to check high value products like boxes, flow-packs, bottles and tubes.
The T3 electronics offer numerous standard advantages, including an intuitive touchscreen display, 200 storable programs and the set-up to communicate with the outside.
Made entirely of stainless steel, it has an IP54 degree of protection and high configurability, thanks to the numerous options available. Double load cell weighing system.
- Technical Specifications
- Electronics
- Equipment
- Optional
| Weighing range | up to 600 g |
|---|---|
| Display division | from 0,1 g |
| Linear speed | up to 100 m/min |
| Throughput | up to 500 ppm |
| Accuracy* | from ± 0,1 g |
| Pneumatic supply | 0,6 Mpa |
| Air consumption (for ejection) | 1 Nl |
| Power supply | 230 V 50/60Hz single-phase |
| Power consumption | 500 W |
| Mirror finishing of metal parts | Stainless steel IP54 |
| Climatic environment | from 5°C up to +40°C non-condensing (closed) |
*depending on the weight, dimensions and type of product | |
T3
- Digital electronics with PC Mainboard mini-ITX
- 10,4" TFT color display with touch screen panel
- Windows 10 IoT operating system
- 200 storable product programs
D3
- Digital electronics with alphanumerical graphic display
- 100 storable product programs
- Electronic self-calibration device
- Conformity with standards ISO - FDA - HACCP - GMP - CE
- 3 levels password access protection
- Mobile average function
- 2 RS232 serial ports
- Production data management in conformity with the standards in force
- Ejection systems
- Reject management systems
- Wind-prevention tunnel
- 24-columns panel printer
- Special conveyors
- Open flap control device
- Separated electronic equipment
- Alarms notification
- USB interface
- Ethernet interface for Industry 4.0 compliance
- Products programs memory expansion
- Feed-back function
- FAT/SAT, IQ/OQ validations, CFR21 part 11
- MID Certification
