TRACKPACK

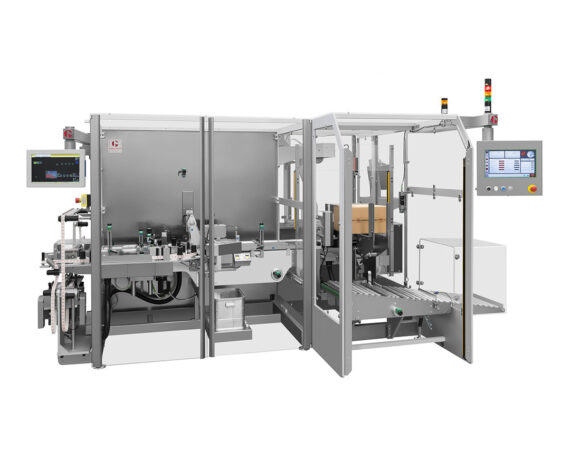

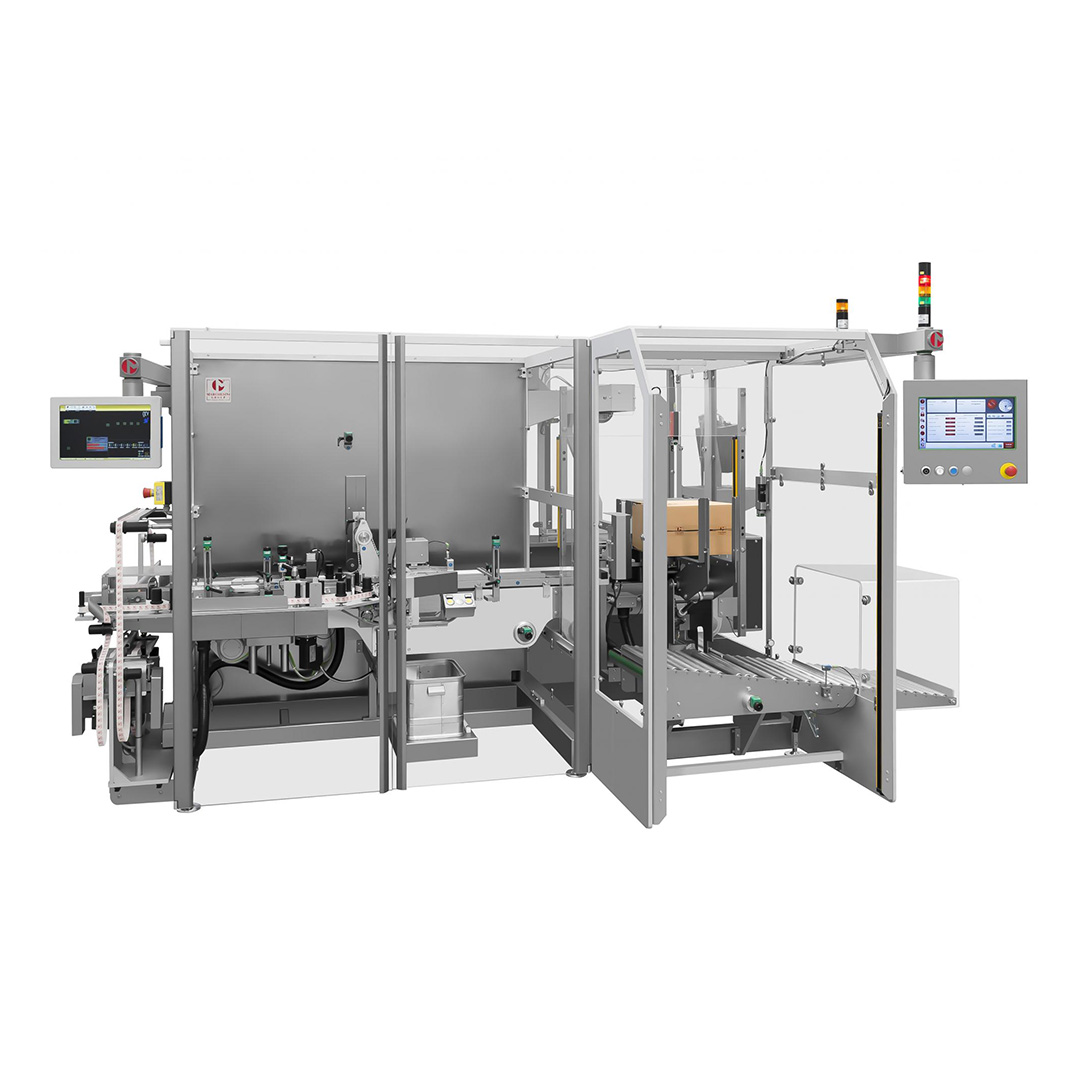

The Continuous Motion Monoblock Machine is designed for serialization, aggregation, and applications involving Vignette or Tamper Evident functionalities, complemented by semi-automatic case packing. It serves as an automatic labelling and semi-automatic casepacking machine, proficient in applying a self-adhesive vignette to the upper side of a carton or two tamper-evident ‘TE’ seals to the carton sides at a medium speed.
- Info
- Technical Data
The machine facilitates the insertion of the product into a manually opened case, manages its loading onto the hopper, and oversees the unloading of filled cases. It is equipped to accommodate tracking devices like inkjet printers and corresponding cameras, which print and validate 2D codes along with human-readable text. The Trackpack operates in tandem with other machines and is configured for serialization and aggregation applications.
Main Features:
- Balcony-style construction ensures easy access, visibility of the product, and facilitates maintenance and cleaning.
- The positive transport system, utilizing toothed belts, maintains carton alignment.
- High-precision label application is achieved.
- A or B print quality grading is available for 2D codes on cartons.
- Quick changeover is possible without the need for different size parts.
- Adjustable horizontal toothed belts can accommodate various carton formats.
- Safety barriers are in place to ensure operator safety.
- A touch screen control panel is available for machine management, including format size parameter setup.
- The machine is configured for serialization and aggregation applications.
| PRODUCT RANGE | |
|---|---|
| Width: | 200 mm - 600 mm |
| Height: | 125 mm - 400 mm |
| Length: | 80 mm - 400 mm |
| OUTPUT | |
| Cases/min: | up to 4 |
