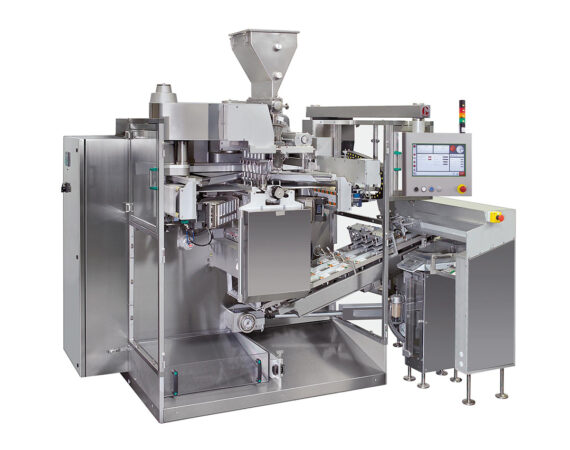

MS Series

A vertical sachet filling/sealing machine designed for intermittent motion, ideal for medium to high production rates and compliant with cGMP standards.

Featured model: WR24
  • Info
  • Technical Data

Main features:

  • Upgraded dosing mechanism.
  • All components that come in contact with the product are made of stainless steel or FDA-approved materials.
  • Flat sealing with a mechanical action.
  • Sealing pressure is modulated using an expansion membrane on one of the sealing jaws.
  • Film propulsion system utilizes non-heated rollers.
  • Detachable frame for cutting and/or perforation, simplifying the cleaning process.
  • Integrated stacking and counting unit with compatibility for carton packaging.
  • Mechanically managed sachet stacking.
  • Display allows for setting the desired count number.
  • Statistical monitoring of sachet weight.

PRODUCT RANGE



Sachet Lenght

From 60 to 150 mm

Sachet Width

min. 25 mm., max. to see with the product

Web Width

standard 400 mm - max. 420 mm

Reel Outer Diameter

Max 500 mm

OUTPUT



Cycles/min

Up to 75
