MCV

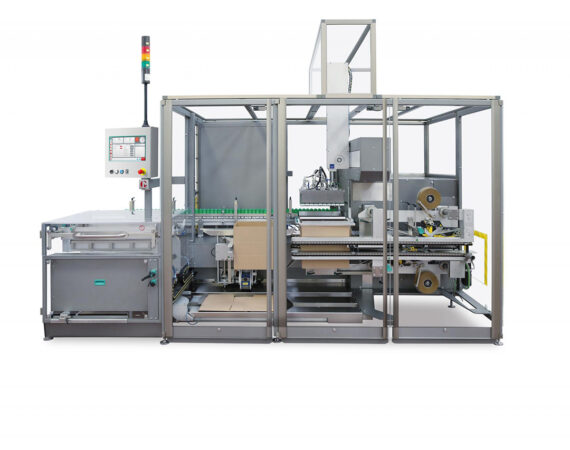

MCV represents an automated vertical casepacker machine.
These devices efficiently pack loose items that need to remain upright, such as various jar or bottle types, as well as conventional cartons and square bundles, making them an optimal choice for the cosmetics industry. They are compact, ergonomic, durable, and reliable, offering innovation and versatility through the incorporation of robotic solutions that notably boost performance in terms of speed and adaptability.
- Info
- Technical Data
Main Features:
- All functions are fully automated, executed by brushless motors, and managed by a Siemens 677 PC.
- The case is supplied into a vertical magazine, ergonomically positioned at the machine's front.
- Offers substantial loading capacity.
- The pick-and-place system ensures positive case pick up and formation.
- The product awaiting packaging, transported on the input belt, reaches beneath the pick-and-place head, which seizes it and directly inserts it into the case through a vertical movement.
- Every pick-up action is verified during each cycle to ensure the case's final composition is accurate. Additionally, pick-and-place functionality using grippers can also be available.
| PRODUCT RANGE | |
|---|---|
| Width: | 140 mm - 400 mm |
| Height: | 135 mm - 300 mm |
| Length: | 100 mm - 300 mm |
| OUTPUT | |
| Cases/min: | up to 12 |
