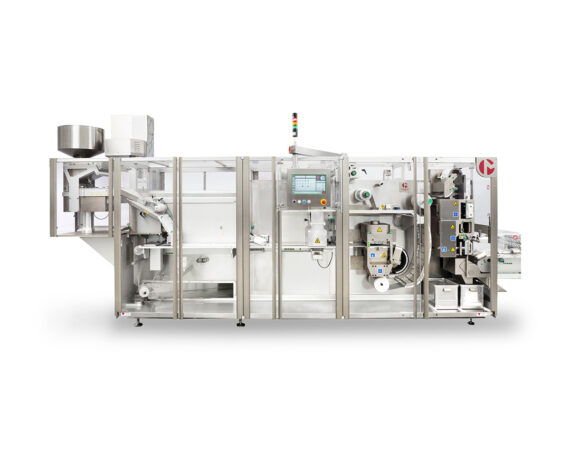

MB Series
Machines are engineered to create blisters in PVC/ALU materials. With the right equipment, they can also handle various forming/lidding materials such as ALU/ALU, Polypropylene, PET, PVC + Aclar®, and COC. These devices shape cavities in the forming material, place various products like capsules, tablets, and oblongs into these cavities, seal them with a lid, and then release the finished blisters onto a conveyor.
Featured Model: MB442
- Info
- Technical Data
Main features:
- Adherence to cGMP standards in design, production, and ergonomics.
- A balcony-style design enhances accessibility, simplifies maintenance, and facilitates cleaning.
- The operational area is on the operator's side, distinct from the mechanical components at the back.
- Mechanical actions are lubricated in an oil bath, enhancing efficiency and minimizing maintenance.
- Blisters are formed, coded, and cut in an intermittent motion, while product loading and lid material sealing occur in a continuous motion.
- The area for product loading is distinct from the lidding and sealing section.
- Size adjustments are straightforward and hassle-free.
BLISTER SIZE | |
---|---|
Forming width: | From 150 mm to 290 mm |
Forming depth: | From 9 mm to 12 mm |
OUTPUT | |
Production speed: | From 220 to 720 blisters/min |
